Allen Bachelder's Platinum Member 1965 MG MGB
or to vote for this car or leave a comment

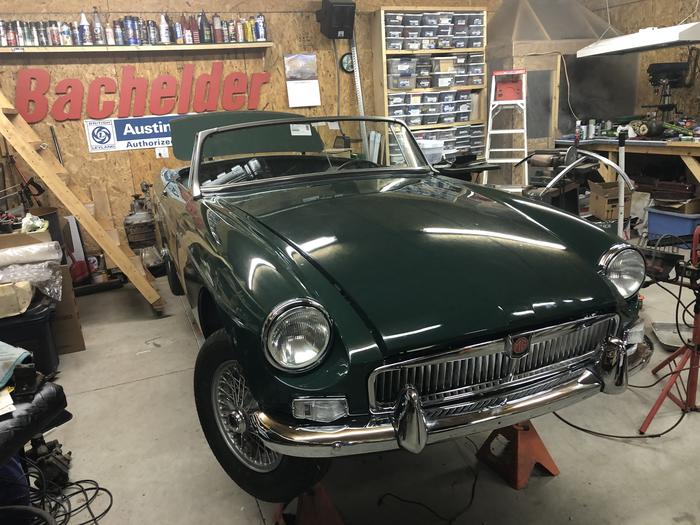

  • Shell completed - summer 2004

  • As purchased - December 1989

  • As purchased - December 1989

  • Stripped - Summer 1990

  • Shell repair - begun Summer 1995

  • Underneath are new diaphragm and inner sill...

Had been outdoors without top (hood) for 11 years when purchased. Badly rusted, engine siezed. Long range (!) restoration begun in 1995. ' Learned to weld on this car - took me five years to repair the rust. New paint turned out beautifully. Some assembly required.

April 2009. A few problems have turned up on that "beautiful" new paint (lifting behind the doors). That's an advantage in allowing the car to sit for several years; this problem can easily be corrected before it gets too late, or too inconvenient. Restoration was halted in favor of my Magnette, but once that is done, I'll be back to work on her. I think she's going to be a spectacular pull-handle B - with three-sync overdrive to boot!

September 2013. ' Finally spending some time on this car. ' Just got front cross-member cleaned and refinished and I'm now completely dismantling front suspension components. I've bought new A-arms, spring-pans, springs, kingpins, etc. About the only original components that will be reused are the swivel-axles and steering levers. Current goal is to get the body shell back up on new suspension and rolling on it's own wheels.

November 2021. No, i’m still not done. Brake system for this car is now fully plumbed, and with the help of Good Friend Mike Jacobsen, we totally dismantled an engine we are rebuilding for it. Rebuilt transmission awaits on the shelf. Wiring harness is in place, but some connections await at the ends. ‘ Starting to make some connections under the dash. After the engine, the final BIG STEP will be the interior. I was 49 years old when I bought this car; ‘ hope to finish it in.the next year before I turn 83.

January 2022. Engine block and head are out to Vic’s Auto and Performance in Commerce Township MI (recommended by Bruce Mann) for machine work. Parts and advice coming from Hap Waldrop at Acme Speed Shop. Light-weight MaxPeeding rods, lightweight flywheel, decked .013”, bored +.030 and a mild cam that comes on at 2500 rpm. I will do the assembly. This is not the original engine, although it is a correct 18GB. The original had been replaced long before I bought the car - and the replacement was seized.

Currently working on converting car back from incorrect strap-on gas tank to correct bolt-on. Removing struts for the strap-on turned out to be a bigger problem than anticipated. Some damage to boot floor incurred. Currently fixing that.

August 2025. Still working on this car! After 35 years! No it does not take that long to restore a car - except when it goes on the back shelf at various times while you restore four others. ‘Got several productive months on it earlier this year - finishing assembly of the engine and installing it in the car - along with a transmission I rebuilt in 2008! I have a new exhaust system for the car. I need to assemble one of the two carbs, and install new starter and alternator. ‘Hopes are for an initial engine start this fall.

At one time I hoped to have this car ready for the 2023 100th anniversary of MG. Next, it would have been nice to have it ready for it’s own 60th anniversary this year. The next major project will be the interior. Maybe 2026?

Vehicle Information

Owner: Allen Bachelder Platinum Member   [bachldrs]
Location: Clyde, MI, MI, USA USA
Status: Restoration in progress


VIN:GHN3L57254
Model Year:1965
Build Date:1965-02-19
Original Colour:BRG
Current Colour:BRG, finally!
Odometer:116,000 miles
Body Code:54905 - aka MGB 054937
Engine Type:4 cyl 5 main B-series
Engine Code:18 GB-U-H 83664
Transmission:3 sync 4 speed overdrive
Last Updated:2025-08-09 17:20:11
Magic VIN Decoder
GHN3L57254
Factory: Abingdon, England
Make: MG
Engine: B-Series (1.2-2.4L) 4cyl
Body Type: 2 Seat Roadster
Series: MGB MkI (1962-1967)
Market: World, Left-Hand Drive
Model Year: 1962 to 1969
Car Number: 57254
Engine Size: 1798cc
Engine Type: Unknown!

These are "best guesses" based only on the VIN, completeness & accuracy are not guaranteed. Information entered by the owner should take precedence.


. Become a Supporting Member to hide the ad above & support a small business

Leave a Comment

Member Comments on Registry: 1965 MG MGB   ↵
Rated 8.8 out of 10 based on 4 ratings
2020-04-05 16:36:45 # 62717
Comment by Robert P
Rating: 5/10
Nice car! Gives me hope on my 63 project, also badly rusted.
2021-11-08 22:22:04 # 77761
Beautiful job and beautiful car ... congratulations
2021-11-09 16:50:27 # 77786
Comment by Allen Bachelder
Thanks for your kind remarks. I will forever be a student of welding - never a master. But still, what I learned to do on this car has been enormously satisfying. You CAN learn these skills - and grinding skills too - particularly necessary if you dont learn the welding skills as well as youd like! ;-)
2022-01-12 06:57:44 # 79173
Comment by Richard Clark
My 66 wasn't quite as bad but did require a lot of removal and replacing of parts. I also learned to weld for this project. Like you things in my life got in the way and had to put it on hold. Trying to get motivated to start again. My time is getting short and I would like to enjoy this car again. Great job on your 65.
2022-01-12 07:06:57 # 79174
Great Allen ... I'm looking forward to seeing you on the roadBest regardsGianfranco
2022-01-12 14:19:50 # 79180
Comment by Allen Bachelder
Richard, Gianfranco,Thanks for your kind remarks. The gas tank correction turned out to be a giant PITA - setting me back for weeks. But Im starting to see the light at the end of the tunnel. Just hoping its not an oncoming train!
